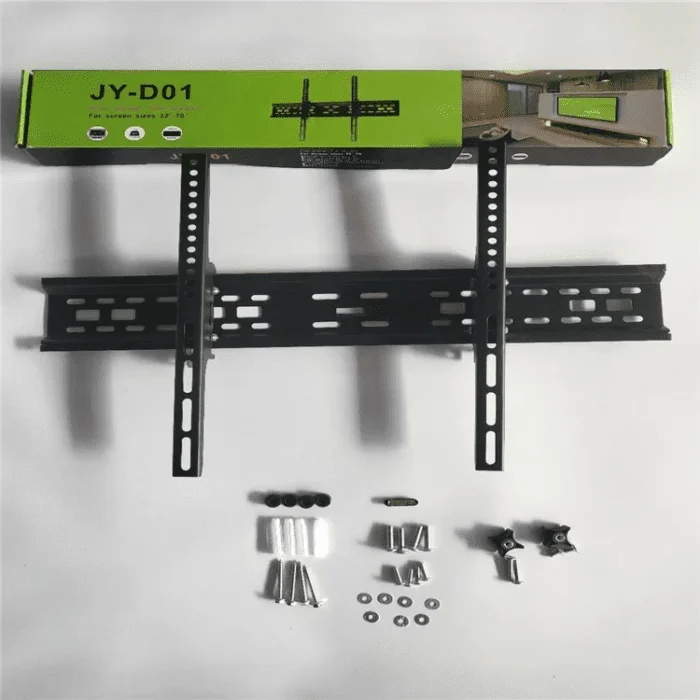

JY-D01 Tilt Wall Bracket – Secure Mount for 32–70 Inch TVs
Model: JY-D01
Compatibility: 32 to 70 inch televisions
Mount Type: Wall Mount with Tilt Adjustment
Max Load: Up to 60 kg (132 lbs)
A Clean, Secure Mount for Your Large‑Screen TV
The JY-D01 Tilt Wall Bracket is engineered to provide a rock‑solid mounting solution for televisions ranging from 32 to 70 inches, including popular TCL models. Whether you are setting up a home theater, upgrading your living room, or installing a display in a commercial space, this tilt wall mount offers the perfect blend of strength, functionality, and sleek design. With its low‑profile construction and convenient tilt adjustment, the JY-D01 helps you achieve the ideal viewing angle while keeping your TV safely secured to the wall.
JY-D01 70″ Tilt Wall Bracket Mount Key Features
- Wide TV Compatibility – Designed to fit most 32‑ to 70‑inch LED, LCD, QLED, and OLED televisions from leading brands including TCL, Samsung, LG, Sony, and Hisense.
- Universal VESA Support – Accommodates VESA mounting patterns from 100×100 mm up to 600×400 mm, ensuring a secure fit for virtually any TV in this size range.
- Heavy‑Duty Steel Construction – Crafted from high‑grade cold‑rolled steel with a durable powder‑coat finish, providing long‑lasting strength and corrosion resistance.
- High Weight Capacity – Supports televisions weighing up to 60 kg (132 lbs) , making it suitable for larger 70‑inch displays.
- Tilt Adjustment – Offers up to 15° of downward tilt, allowing you to reduce glare and optimize viewing comfort, especially when the TV is mounted higher on the wall.
- Low‑Profile Design – Keeps the TV just 35–50 mm from the wall, creating a sleek, built‑in appearance that minimizes visual clutter.
- Integrated Bubble Level – A built‑in spirit level helps ensure a perfectly straight installation without guesswork.
- Easy Hook‑On Installation – The wall plate and TV brackets feature a simple hook‑and‑lock system, allowing one person to securely attach the TV after the wall plate is installed.
- Safety Locking Mechanism – Includes locking screws or safety pins to prevent the TV from being accidentally lifted off the wall.
- Cable Management – Open wall plate design allows for neat routing of HDMI, power, and other cables behind the TV for a clean finish.
- All Hardware Included – Comes with mounting screws, washers, spacers, concrete/brick anchors, and a detailed installation manual.
JY-D01 70″ Tilt Wall Bracket Mount Technical Specifications
| Specification | Details |
|---|---|
| Model | JY-D01 |
| Compatible Screen Size | 32 – 70 inches |
| Max Load Capacity | 60 kg (132 lbs) |
| VESA Compatibility | 100×100, 200×100, 200×200, 300×200, 300×300, 400×200, 400×300, 400×400, 600×400 mm |
| Tilt Angle | 0° to –15° (downward) |
| Distance from Wall | 35 – 50 mm (low‑profile) |
| Wall Type | Solid concrete, brick, or wood studs |
| Material | Cold‑rolled steel (SPCC) with powder‑coat finish |
| Color | Black |
| Included Hardware | Wall plate, TV brackets, mounting screws, washers, spacers, concrete anchors, bubble level, installation manual |
Ideal Viewing Comfort with Tilt Adjustment
The JY-D01 is designed with a simple yet effective tilt mechanism that allows you to angle the TV downward up to 15 degrees. This is especially useful when the TV is mounted above a fireplace, high on a wall, or in a bedroom where the viewer is seated lower than the screen. Tilting the TV reduces glare from overhead lights and windows while providing a more natural viewing angle, reducing neck strain during extended viewing sessions.
Simple, Secure Installation
Installing the JY-D01 is straightforward, even for large TVs. The wall plate attaches securely to two wall studs or solid masonry, providing a stable foundation. Once the plate is installed, the TV brackets are attached to the back of the television. The TV then hooks onto the wall plate and locks into place with integrated safety screws, ensuring it cannot be accidentally dislodged. The included bubble level guarantees a perfectly horizontal installation.
Built for Safety & Durability
Safety is paramount when mounting a valuable large‑screen TV. The JY-D01 is constructed from high‑strength steel and finished with a corrosion‑resistant coating. All hardware is rated for the maximum weight capacity, and the mount undergoes rigorous testing to ensure long‑term reliability. When installed correctly on appropriate wall structures, this mount provides peace of mind for years to come.
Why Choose the JY-D01 Tilt Wall Mount?
- Space‑Saving – Eliminates the need for bulky entertainment stands, creating a cleaner, more open room layout.
- Improved Viewing Experience – Tilt adjustment helps achieve the perfect angle, reducing glare and neck fatigue.
- Enhanced Safety – Securely anchors your TV to the wall, reducing the risk of tipping, especially important in homes with children or pets.
- Sleek Aesthetics – Low‑profile design creates a professional, built‑in look that complements modern interior design.
Important Installation Notes
- Wall Structure – This mount must be installed on solid concrete, brick, or into two wooden studs spaced 16″ or 24″ apart. Do not install on drywall alone.
- VESA Compatibility – Verify your TV’s VESA mounting hole pattern and weight before purchase. Most 32–70 inch TVs use patterns within the supported range.
- Professional Installation Recommended – Due to the size and weight of large TVs, professional installation is strongly advised to ensure safety and proper alignment.
Elevate Your TCL Experience with TCL Kenya
At tcl-kenya.com, we understand that your TCL TV deserves the best support. The JY-D01 Tilt Wall Bracket is the ideal companion for your television, offering robust construction, universal compatibility, and a sleek finish that lets your TV take center stage.
Order yours today and mount your large‑screen TV with total confidence.
